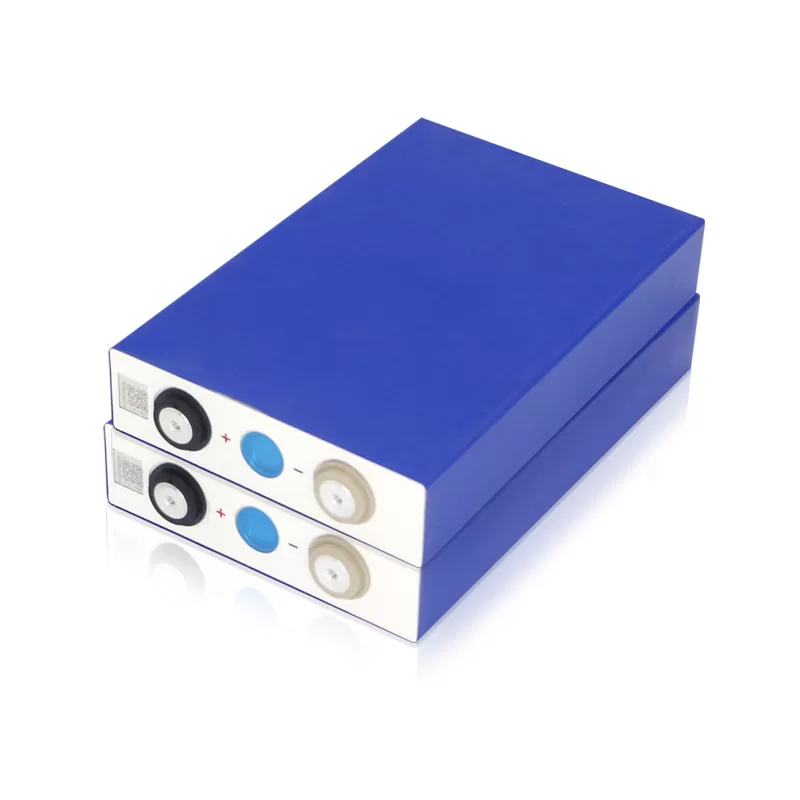

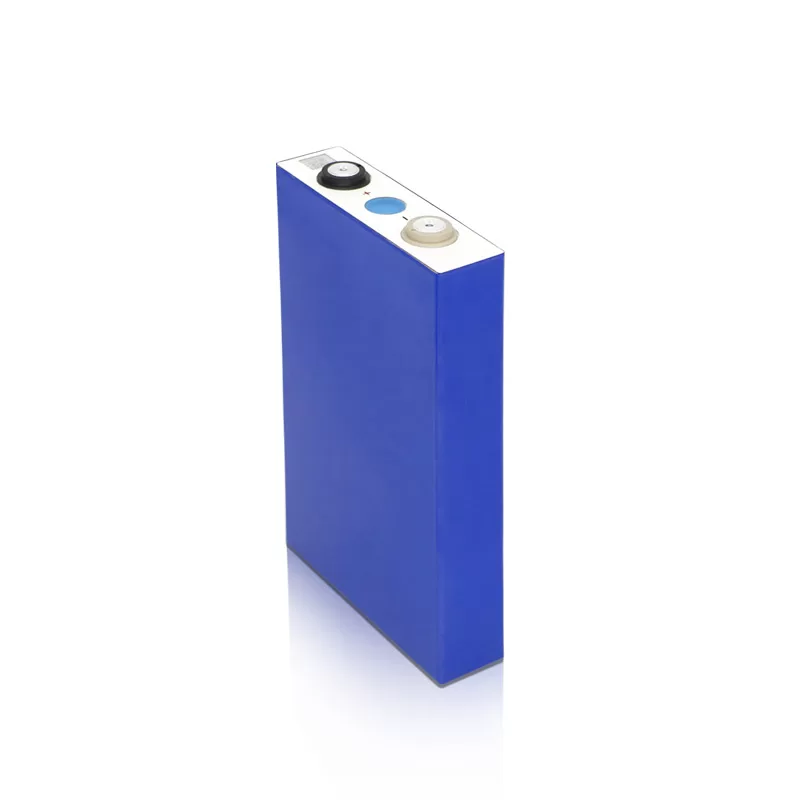

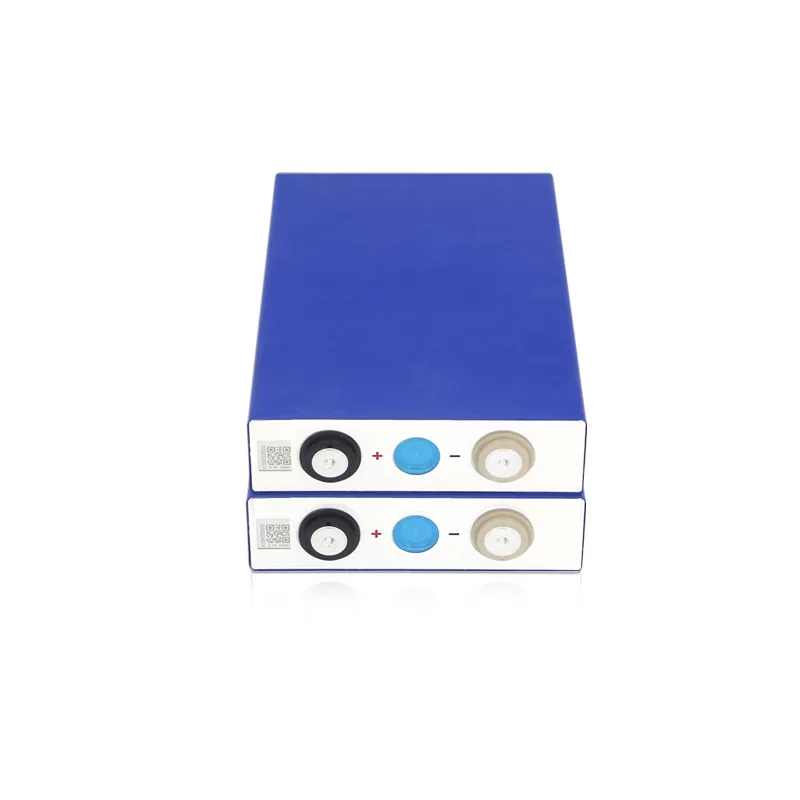

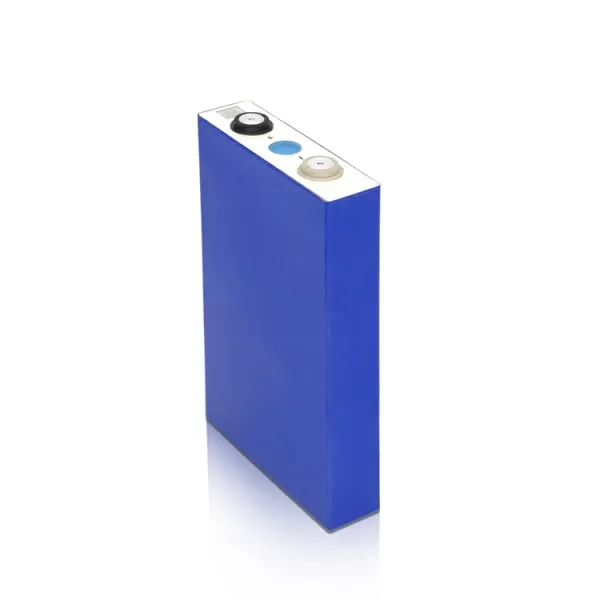

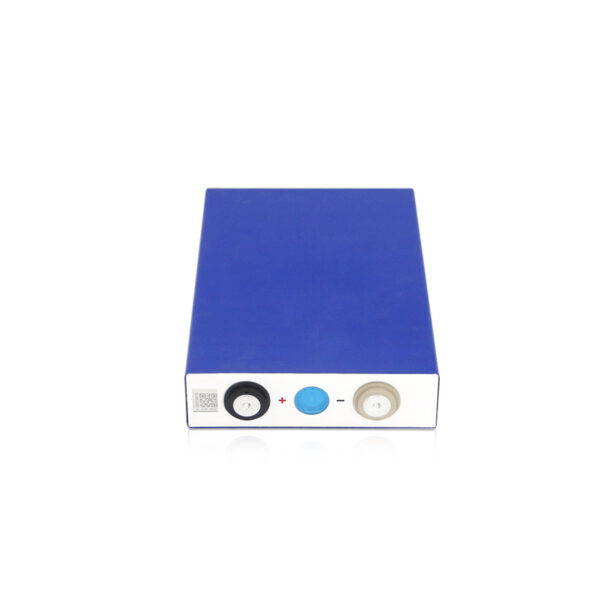

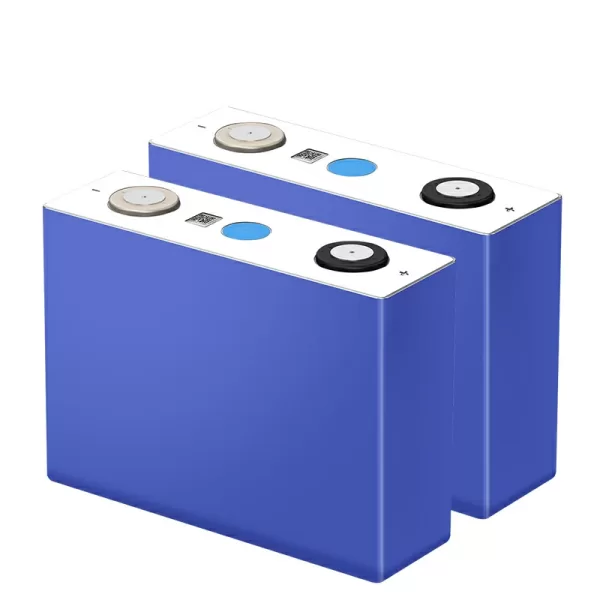

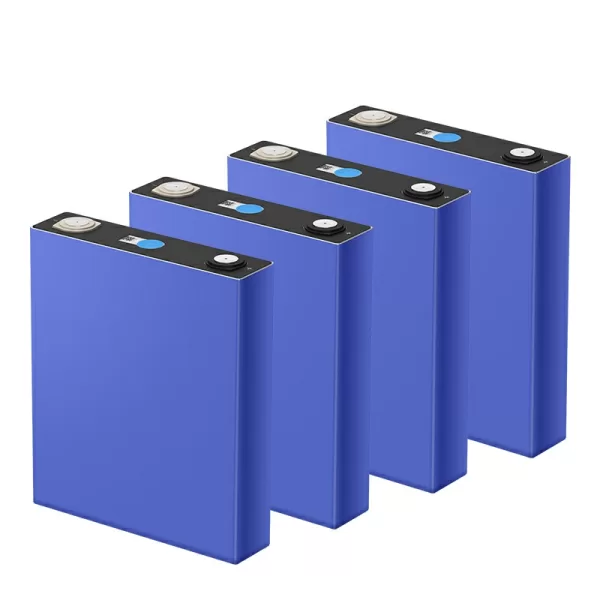

3.2V 105Ah Prismatic Lifepo4 Battery Cell

3.2V 105Ah Prismatic Lifepo4 Battery Cell

Cycle Life: 2000 Times
Certification: CE,FCC,RoHS,UN38.3
Warranty: 3months-1year
Application: Power Tools, Electric Vehicle Communications Energy storage Int



Ⅰ. Features

1. High capacity and stable discharge voltage.
2. Longer working time with high performance.
3. Light weight with small size.
4. Outstanding discharge properties and small internal resistance.
5. No memory effect, good discharge ability and high load and resist high temperature.
6. Pollution free for environmental protection.
7. 100% Authentic original li-ion rechargeable battery
8. Bulid in anti-explosion protection and circuit protection.

Ⅱ. Specifications

No.ItemsSpecificationsRemark
1Nominal Capacity105Ah25±2℃, standard charing & discharge rate
2Nominal Voltage3.2V25±2℃, standard charing & discharge rate
3Initial resistance≤0.5mΩ1kHz
4Standard charging/discharge current0.5C/0.5C
5Standard charging/discharge cut-off voltage3.65V/2.5V
6Continuouse charging/discharge current1C/1C
7Max. charging/discharge current1C/3C30s
8Self-Discharge rate≤3%/month25±2℃, 30%~50% SOC
9Storage Humidity<95%
10Weight1.98±0.1kg
11Cycle Life25℃ Standard Cycle3500 cycles
12DimensionHeight200.5±0.5mm
Width130.3±0.3mm
Thickness36.7±0.5mm
13Working TemperatureCharging 0~55℃
Discharge -20~55℃
14Storage TemperatureOne year 0~35℃
1 month -20~45℃



Ⅲ. Applications

Solar energy storage systems, electric power systems, home appliance, electric vehicle, golf carts, electric bicycle/scooters, electric wheelchairs, boats, submarine, power tools, electric folklifts, consumer electronics, toys, etc.
