Incoming specifications
1. The modules are composed of pouch cell, prismatic cell and some cylindrical cell pack.
2. The module type is shown in the figure below: just for reference
Prismatic cell pack laser welding apperance
Cylindrical cell pack laser welding apperance
(The actual product is subject to the customer's product)

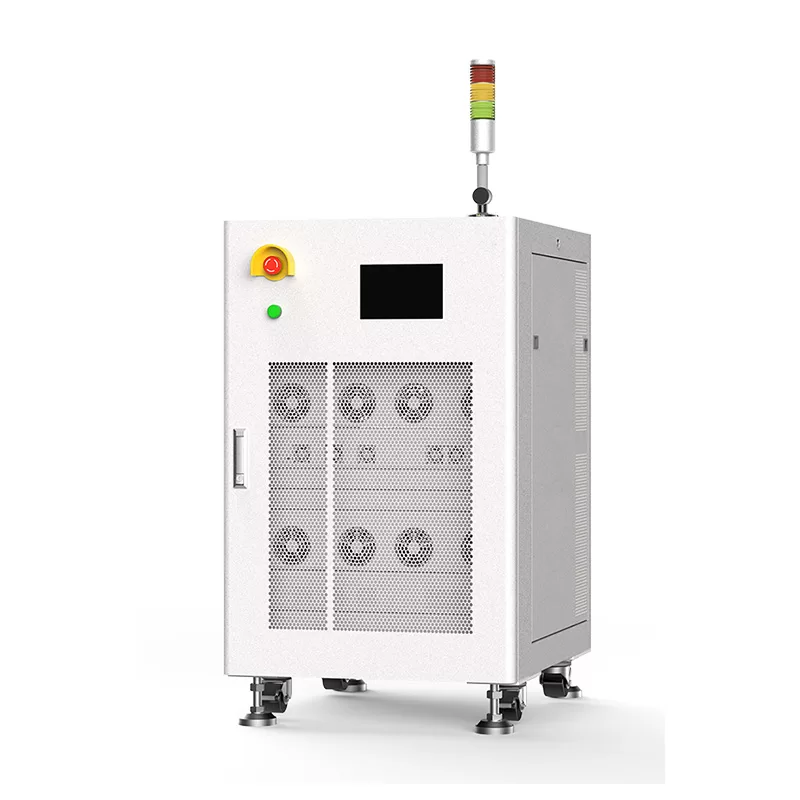

CE-6016n-6V300A
Regenerative Charge and Discharge Battery Testing System
High Frequency Isolation 10V～120V
It has the characteristics of high dynamic response speed, high stability precision and multi-channel flexible configuration which also supports pulse test, cycle life test and simulation test. The system has the function of multi-channel input and energy recovery, which can save a lot of electric energy consumed in the process of charging and discharging. Using bidirectional high-frequency DC converter topology and high-performance multi-channel 24 bit AD converter chip, the sampling resolution is higher than that of traditional single range equipment.
Use data to interprete module testing
Typical Model
| 60V20A | 60V30A | 60V50A | 60V60A | 60V100A | 60V120A |
| 60V400A | 60V240A | 120V50A | 120V100A | 120V200A | 120V400A |
| 200V50A | 500V100A | 200V200A | 400V200A | 750V500A | 800V600A |
| -B (Charge and Discharge Port) / -F (Negative Pressure) Optional Functions | |||||
