Overview
Incoming specifications

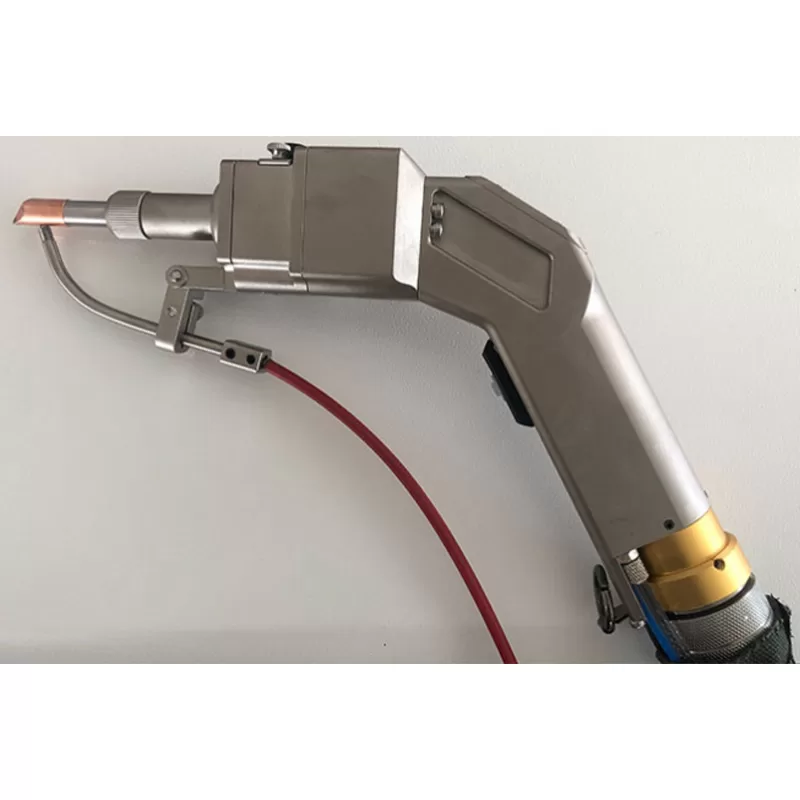

QBH welding head + system
| Model | HPHL-1500 |
| Laser power | ≥1500W |
| Focal length | 150/200 |
| Collimate focus | 60/80 |
| Interface type | QBH |
| Accessible wave range | 1064 |
| Net weight | 0.8kg |
| Light source diameter(mm) | 1.0、2.0、3.0（Option） |
| Usable laser source | All of laser source |
| Control board | HZ-039A-10 |
| System | M-V6 .02 V6.04 |
| Driver | 40*105-DC24V Second Version |
Depth of fusion
| NO | Material | Laser powre | Max fusion depth（mm） |
| 1 | Sus | 500 | 2 |
| 2 | Sus | 1000 | 3 |
| 3 | Sus | 1500 | 5 |
| 4 | Cs | 500 | 2 |
| 5 | Cs | 1000 | 3 |
| 6 | Cs | 1500 | 4.9 |
| 7 | Al | 500 | 0.8 |
| 8 | Al | 1000 | 3 |
| 9 | Al | 1500 | 4 |
Advantages:
1. Support welding parameter save.
2. CW, Adjust, Argon type, QCW(Pulse welding) Four welding types.

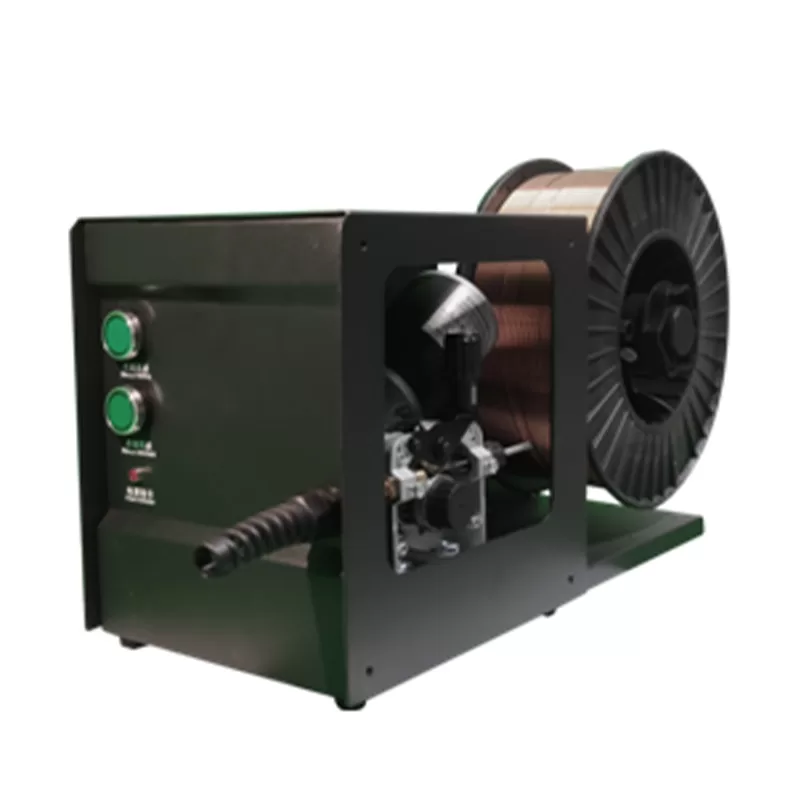

3. Setting wire feeder’s digital parameter in monitor.4. The language include Chinese, English, Korean, Japanese, Russian.
5. The system real-time monitoring condition at operation : Laser source, Water chiller, Control board.
6. Perfect substitute argon welding and electric welding in thin metal material welding area. Like stainless steel, carbon steel, aluminum and etc.
7. Light weight, Small size, Ergonomic design for handling comfort.
8. Safety lock touch for output laser.
9. Easy operation, low requirements for operator.
10. Strong Anti-jamming.
11. The entire seal structure. Internal water and gas route.
12. Adopt independent R&D control system.
13. Strong anti-jamming, configuration 500W-2000W laser source.
