Ⅰ. Features
1. Green energy, non-toxic, non-polluting, wide range of raw materials, cheap.
2. Long life cycle, 2000 times at 80% DOD.
3. It without heavy metals and environment friendly.
4. Maintenance free.
5. Internal BMS with full protection,battery has high voltage protection with higher reliability.
6. No memory effect.
7. High temperature performance is good.
8. Capacity of single battery cell is big.
9. High safety, no explosion, no fire.
10. Quick charging.
11. Metal casing with digital screen.
12.With SB50/SB120/SB175charge and discharge connectors.
Ⅱ. Specifications
| Model | DL-48100/16S1P |
| Nominal Coltage | 48V |
| Voltage of Single Battery Cell | 3.2V |

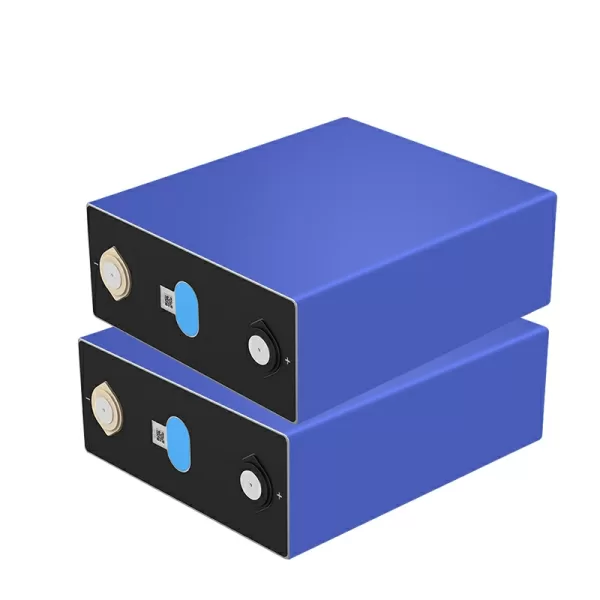

| Battery Cell | 3.2V 100Ah Prismatic LiFePO4 Cell |
| Battery Configation | 16S1P |
| Nominal Capacity | 100Ah |
| Internal Resistance | ≤420mΩ |
| End of Charge Voltage | 54.75V |
| End of Charge Current | 100mA |
| End of Discharge Voltage | 33.75V |
| Charge Method | CC/CV |
| Standard Charge Current | 20A |
| Max Continuous Charge Current | 50A |
| Continuous Discharge Current | 200A |
| Max Pulse Discharge Current | 300A/10S |
| Net Weight | 48KG |
| BMS Protection | Over-charge,over-discharge,over-current,short circuit |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | 10~60℃ |
| Storage Temperature | -10~45℃ |
| Warranty | 2 years |
| Lifecycle | 3000 times |
Ⅲ. Applications
1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals
2) Solar hybrid street lighting, UPS power supply, home storage
3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations
4) Hospitals, finance, telecommunications , system critical backup power systems
5)Golft cart,camping car;solar system
6)E-Rickshaw
