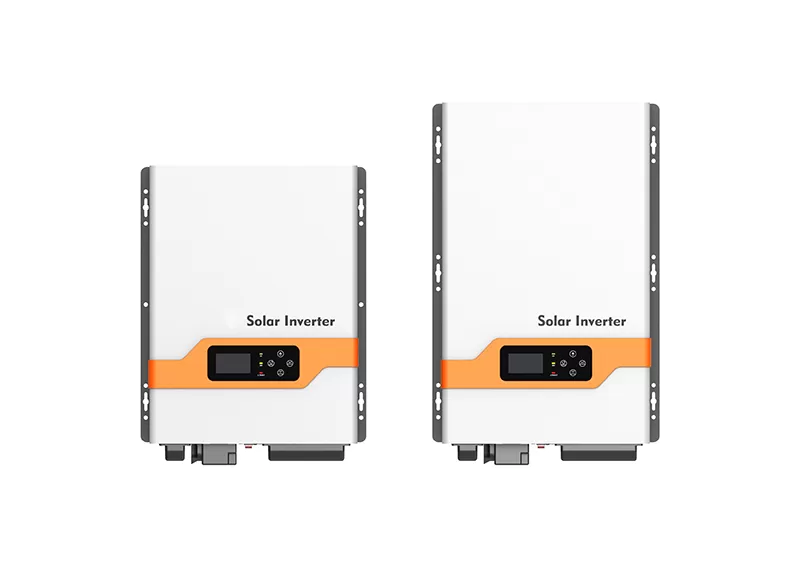

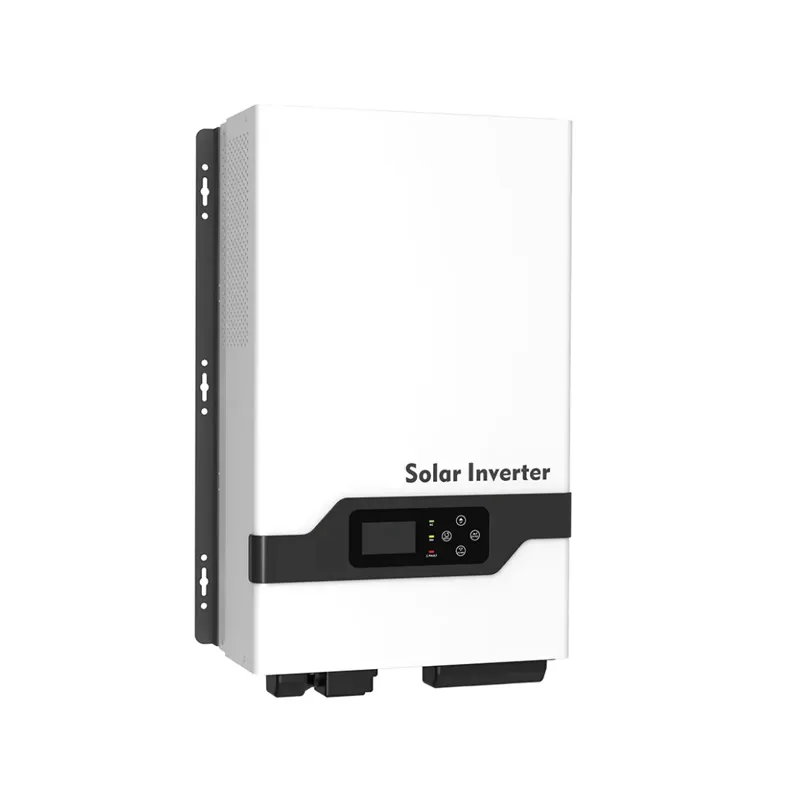

Pure Sine wave High Frequency solar Inverter(450V) PV1800 PRO Series (3KW-5.5KW)
Features
- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Built-in MPPT solar charge controller
- MAX PV Array Open Circuit Voltage: 450V
- Can provide the power to the load without battery

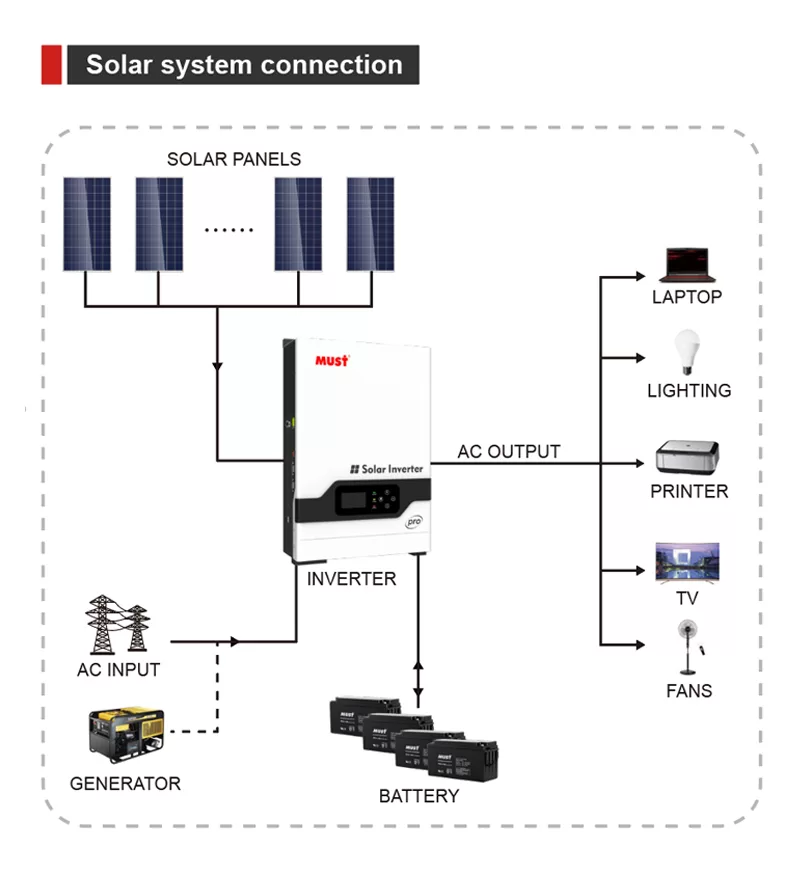

- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function
- Support USB, RS485 monitoring function
- Parallel operation with up to 3 units
- WIFI remote monitoring (optional)
Introduction
PV1800 PRO is a multi-function inverter/charger,combining functions ofinverter,MPPT solar charger and battery charger to offer uninterruptible power support in portable size.PV1800 PRO Series can run without battery.The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc,which Can help customers make full use of solar energy.
| MODEL | PV18-3024 PRO | PV18-3524 PRO | PV18-5248 PRO | PV18-5548 PRO | |||
| Nominal Battery System Voltage | 24VDC | 48VDC | |||||
| INVERTER OUTPUT | Rated Power | 3000VA/3000W | 3000VA/3000W | 3000VA/3000W | 3000VA/3000W | ||
| Surge Power | 6000W | 6000W | 6000W | 6000W | |||
| Waveform | Pure sine wave | ||||||
| AC Voitage Feguiation (Batt.Mode) | 230VAC±5%(Setting) | ||||||
| linverter Etcioncy(Peck) | 90% | ||||||
| Transfer Time | 10ms(UPS/VDE4105)/20ms(APL) | ||||||
| AC INPUT | Voltage | 230VAC±5% | |||||
| Selectable Voitage Fange | 170~280VAC(UPS)/90~280VAC(APL)/184~253VAC(VED4105) | ||||||
| Frequenoy Fange | 50Hz/60Hz(Auto sensing) | ||||||
| BATTERY | Normal voitage | 24VDC | 24VDC | ||||
| Floating Charge Voitage | 27.4VDC | 27.4VDC | |||||
| overcharge Protectian | 30VDC | 30VDC | |||||
| SOLAR CHARGER &AC CHARGER | Maximum PV Array Open Cirout Vollage | 450VDC | |||||
| Charging Aigorthm | 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) | ||||||
| Maximum PV Array Power | 4000W | 4000W | 4000W | 4000W | |||
| PV Aray MPPT Voltage Range | 150~430 VDC | ||||||
| Maximum Solar Charge Curent | 80A | 100A | 120A | 80A | 100A | 120A | |
| Maximum Ac Charge Curent | 60A | 80A | 80A | 60A | 80A | 100A | |
| Maximum Charge Current | 80A | 100A | 120A | 80A | 100A | 120A | |
| SPECIFICATIONS MECHANICAL | Machine Dimensions(WH’D)(mm) | 322*486*134 | 322*486*134 | 309*505*147 | 309*505*147 | ||
| Package Dimensions(W”H’D)(mm) | 426*560*260.5 | 426*560*260.5 | 375*655*269 | 375*655*269 | |||
| Net Weight(kg) | 8 | 10 | 14 | 14.4 | |||
| Gr0ss Welght(kg) | 9.5 | 11.5 | 16.4 | 16.8 | |||
| OTHER | Humidity | 5% to 95% Relative humidity (Non-condensing) | |||||
| Operating Temperature | 0°C~50°C | ||||||
| storage Temperature | -15℃~60°℃ | ||||||
